RS-200 / 3000 Radiation Portal Monitoring Systems (Radiation Solutions)

Heeft u een vraag of wilt u dit product bestellen? Neem dan contact met ons op.

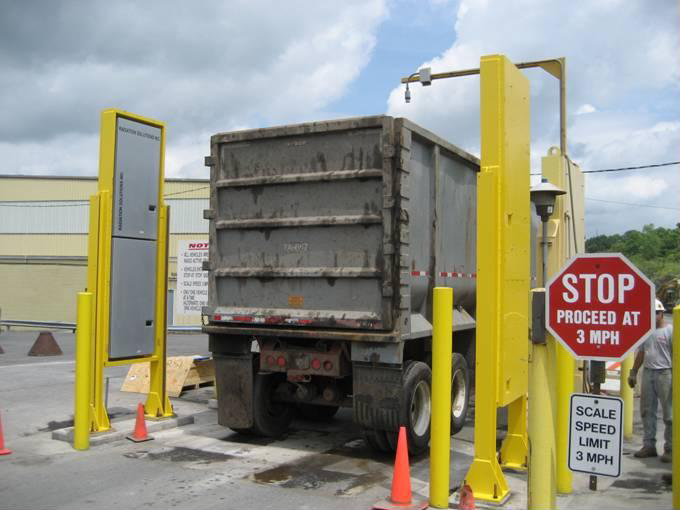

The RS-200 systems (Radiation Solutions) are 2 PMT based fully digital systems specially designed for the difficult operating conditions of scrap and aluminum processing plants. These systems combine exceptional performance with minimum false and nuisance alarms through advanced digital design and spectral analysis. The system is fully modular which makes it easily configurable to suit local logistics and permits fast, easy maintenance. The system operates independently and has direct Ethernet connectivity to plant networks.  This connectivity allows for a fully integrated plant design with the ability for RSO overview on all installed systems.

RS-200 / 3000 Radiation Portal Monitoring Systems features:

  • detector volume: 1512 in3 (23.5L) – maximum 16 detectors
  • fully digital system design – no user adjustments
  • 2 PMT technology for high sensitivity + high noise rejection 10/sec data sampling rate for optimum data analysis
  • advanced 4096/128 channel spectrometer system for improved analysis
  • spectral analysis permits rejection of the majority of false, rain and void alarms prevalent in most systems without reducing system sensitivity
  • alarm classification to sort alarms into scrap and non-scrap categories for better control
  • minimum nuisance alarms due to advanced signal screening and pattern recognition
  • system sensitivity analysis and auto correction to minimize signal loss with NO radioactive sources required to test system performance
  • 15″ color touch screen display for easy user interfacing
  • local printer for alarm printout
  • GPS connection for accurate location and timing
  • direct connection to the plant network enabling RSO overview of all alarms on all systems
  • real-time (1/sec) error reporting to RSI service via the Internet for fast support and system overview
  • 48V operation to minimize voltage drops on long cables
  • modular system design for easy on site service by local staff for “instant” service support
  • 24/7 tech support for fast responsive support from technical people if required

Radiation Solutions Inc. (RSI), opgericht in 2006, is gespecialiseerd in stralingsdetectie en monitoring systemen. Een groot deel van de medewerkers van RSI heeft een Exploranium verleden. Hierdoor he...


Voor dit product is één download beschikbaar.

Datasheet RS-200 / 3000 Radiation Portal Monitoring Systems - Radiation Solutions
