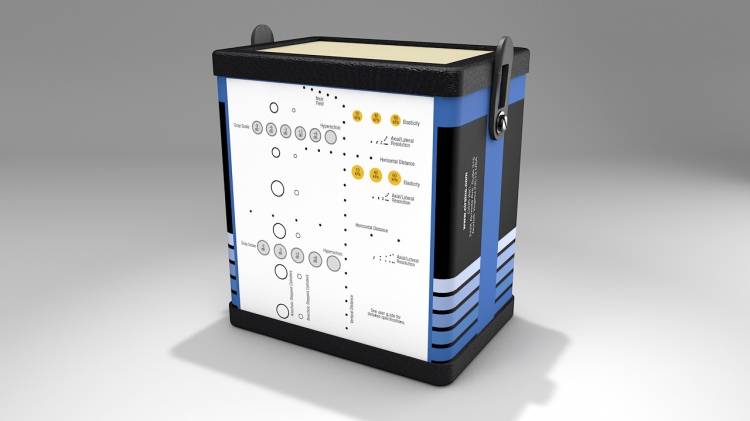

Model 040GSE Multi-Purpose, Multi-Tissue Ultrasound Phantom – CIRS
The CIRS Model 040GSE Multi-Purpose, Multi-Tissue Ultrasound Phantom is the most complete solution available for performance and quality testing. It contains nine performance measurements, including grey scale targets, anechoic stepped masses and elasticity targets.
This is the only QA phantom on the market that provides both elasticity targets and all the standard B-mode imaging test objects.
FEATURES
The unique dual attenuation of the background gel allows for evaluation of transducers that range from 2 MHz – 15 MHz. A removable water well and endocavity cover extends the use of the phantom by allowing evaluation of all transducer configurations: linear, curvilinear and intercavity.
All of CIRS’ ultrasound QA phantoms come standard with a robust housing, rugged carry case, 48-month warranty, and a userguide.
BENEFITS
- Unique dual attentuation design allows testing on low frequency abdominal probes up to 5 MHz and high frequency probes to 15 MHz and higher.
- Detachable water wells allow for testing curvilinear and endocavity probes.
- Only general purpose QA phantom on the market with elasticity.
- Ensure over ten years of reliable use through reinspection and repair services.
KEY TESTS WITH MODEL 040GSE
- Uniformity
- Depth of penetration
- Beam profile/ Focal zone/ Lateral response width
- Vertical distance measurement
- Horizontal distance measurement
- Axial and lateral resolution
- Elevational resolution
- Contrast resolution
- Grayscale contrast sensitivity
- Elasticity sensitivity
- Dead zone assessment
If you want more information, go to our partner’s site!
CIRS is in 1982 opgericht door Dr. Elias Zerhouni. CIRS wordt wereldwijd erkend als marktleider in het ontwikkelen van tissue equivalent phantomen voor dosimetrie, kalibratie, kwaliteit controle, ond...
Downloads
Voor dit product is één download beschikbaar.
Datasheet Model 040GSE Multi-Purpose, Multi-Tissue Ultrasound Phantom - CIRS
