AlphaGUARD-Radon Monitor – Bertin Instruments

Any questions or would you like to order this product? Do not hesitate to contact us

AlphaGUARD is a portable, battery or net-operated radon monitor with high storage capacity. In addition to the radon concentration in air, AlphaGUARD measures and records also simultaneously ambient temperature, relative humidity and atmospheric pressure with integrated sensors.

Thanks to its high sensitivity and long time stable calibration, it is the reference instrument for professional radon monitoring and accurate measurement on site.

The complete product line provides all accessories for radon in air, water, soil, building materials, progeny, thoron and calibration equipment to perform air, water, soil, exhalation measurements. The collected data can be linked to the DataVIEW software, allowing data download and storage as well as professional data analysis and reporting. With AlphaGUARD, bring your Radon Lab everywhere.

FEATURES

0.62 L pulsed ionization chamber
Measuring range of 2 to 2,000,000 Bq/m³,
Instrument calibrator error of 3%
Storage capacity of up to 60,000 measurement points
Storage of:
- 400 days at 10 min measuring cycle
- 2,500 days at 60 min measuring cycle
Battery life of 10 days (40 days with external battery)
329 mm x 355 mm x 123 mm and weighs 6,2 kg (13,7 lbs)

BENEFITS

AlphaGUARD is suitable as a reference device and offers the following features:

Quality at the highest level
Long-term stable calibration factor (guaranteed 5 years)
Calibration traceable to different national standards (PTB, NIST, NPL)
Inbuilt quality assurance system for permanent validation of system operation and data
Fast transient response
Automatic background correction
No sensitivity to high air humidity

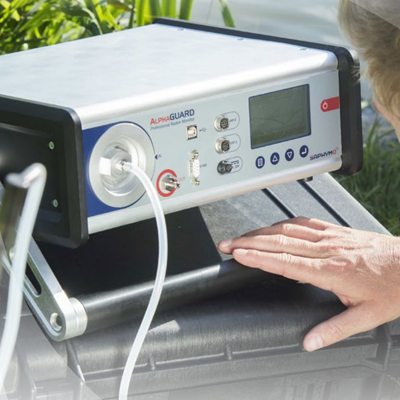

Alphaguard radon monitor from Bertin standing outside with a person touching it.

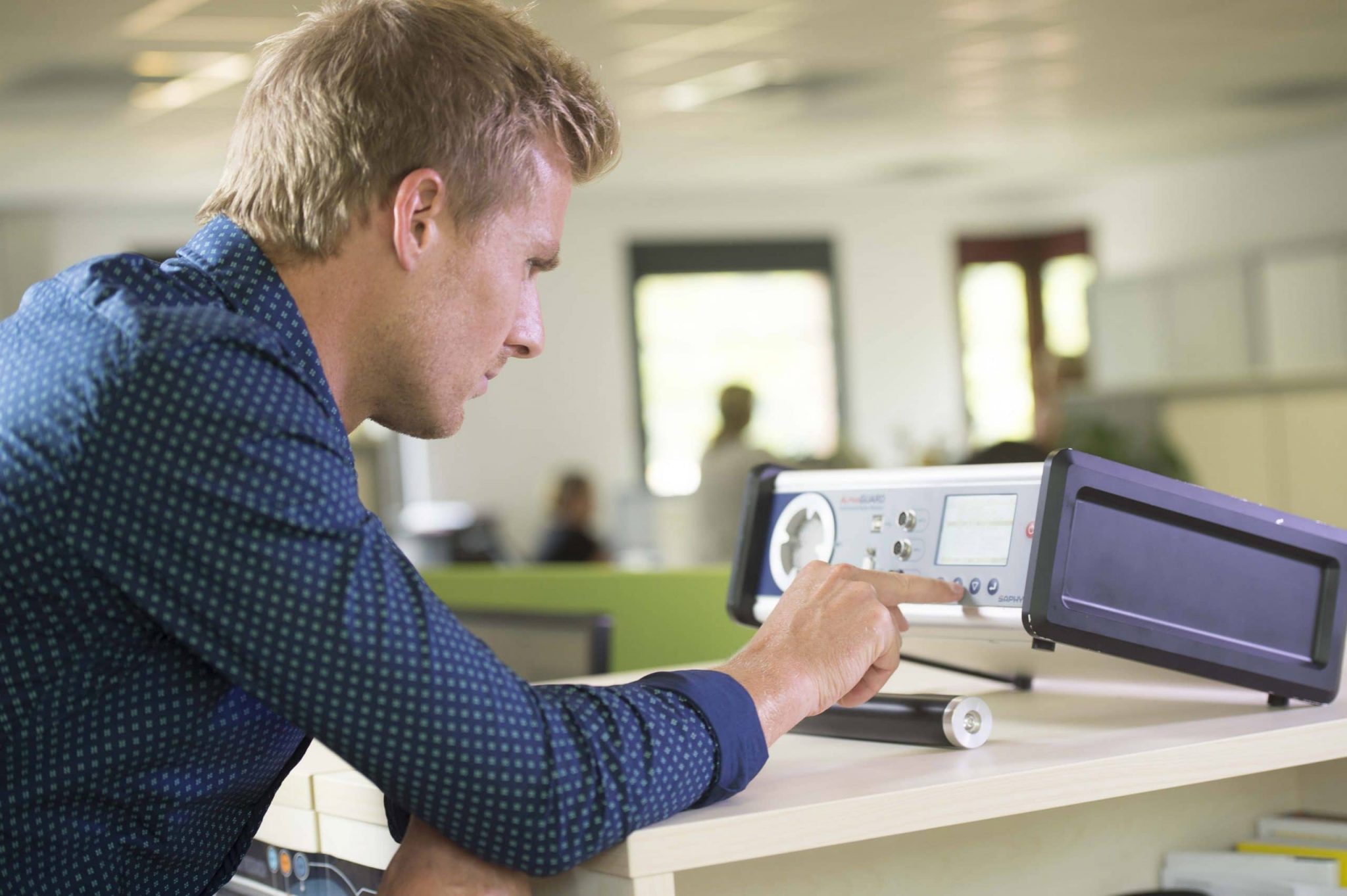

Alphaguard radon monitor from Bertin with a person operating the device inside a room

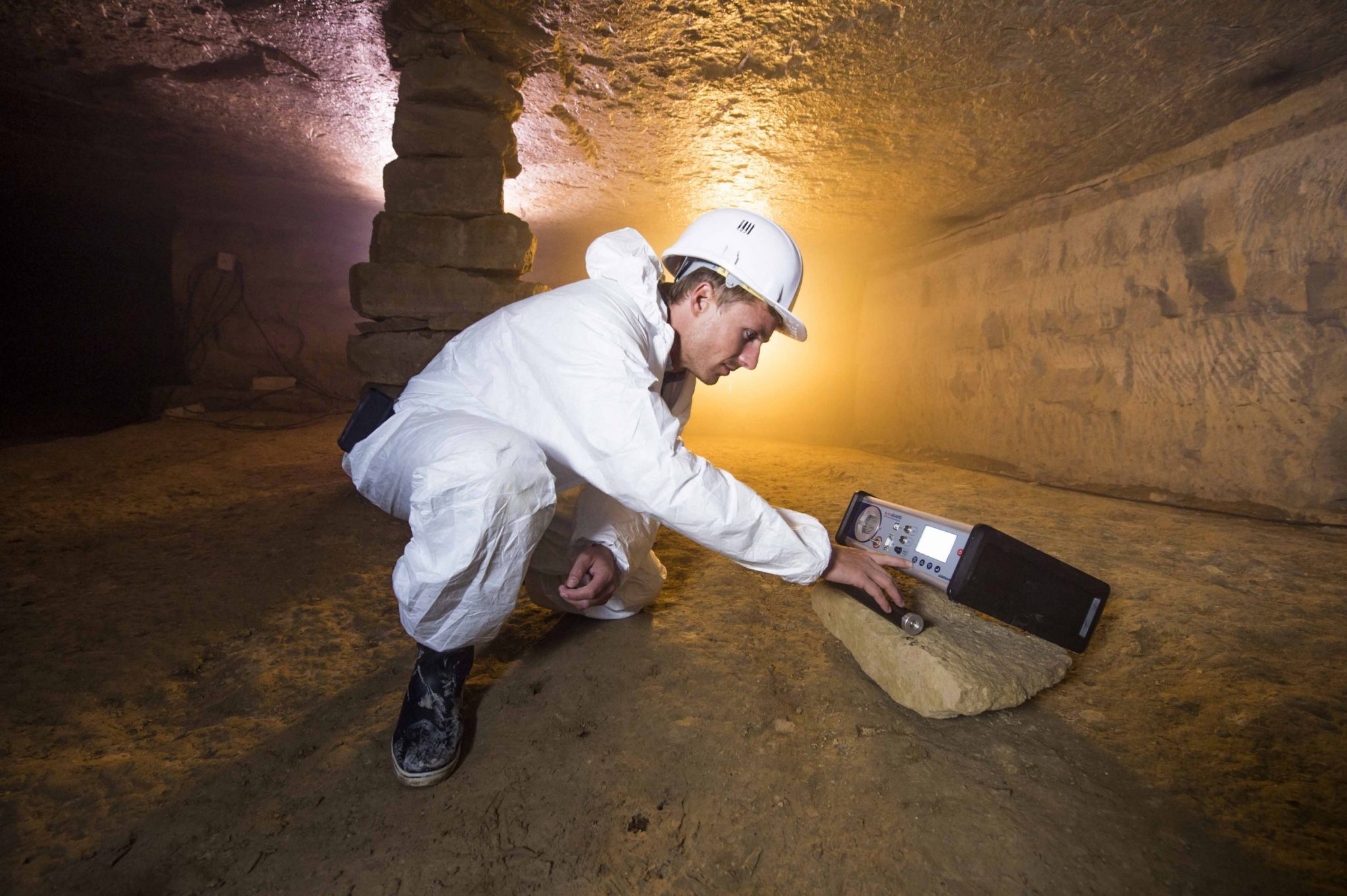

Alphaguard radon monitor from Bertin being operated by a person in a cave

Person using Alphaguard for measuring radon concentration in the soil

Technology

AlphaGUARD incorporates a pulse-counting ionization chamber (alpha spectroscopy).

Based on optimal chamber geometry and intelligent signal evaluation, this radon monitor is suitable for continuous monitoring of radon concentrations between 2 – 2 000 000 Bq/m³.

The DSP (Digital Signal Processing) technology provides highly effective differentiation ability between “real” radon data and all kinds of artefacts.
