QA Phantoms

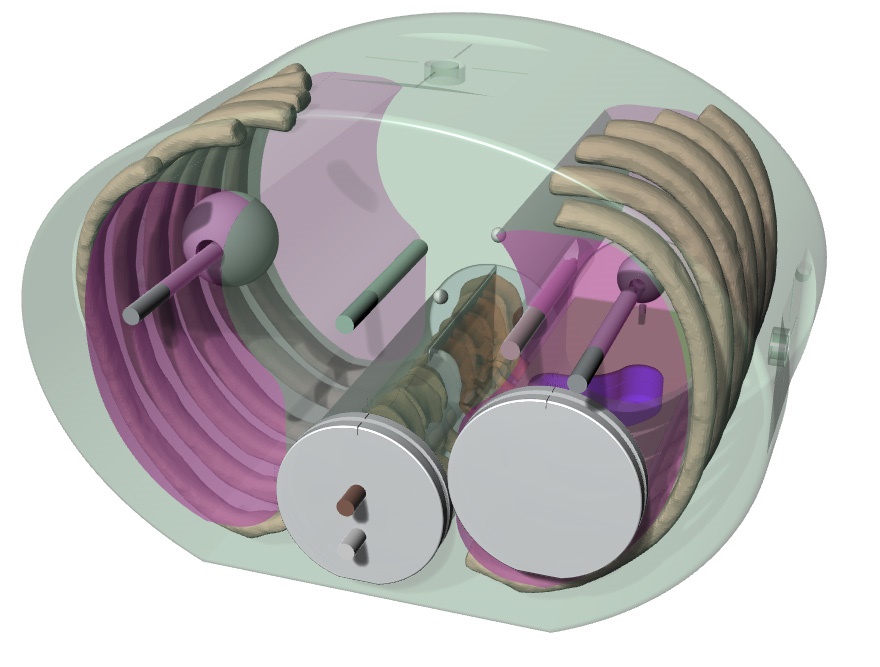

The E2E® SBRT Phantom with Removable Spine is a single tool for end-toend commissioning and routine QA. The anthropomorphic, tissue-equivalent thorax phantom contains articulated spine, ribs, and lungs. All materials are suitable for use in kV and MV energies. High Resolution Anthropomorphic... Read more

Daily Isocenter Checks Made Easy Ensure isocenters match from lasers to EPIDs to CBCT. MultiPHAN™ is a practical, cost-effective tool for Radiation Therapists to perform daily isocenter checks and meet TG-142... Read more

The CIRS Proton Therapy Dosimetry Head is an anthropomorphic head phantom designed for commissioning and treatment planning system (TPS) verification with any conformal or IMRT Proton Therapy system1. The phantom consists of CIRS tissue-equivalent materials. The proton therapy head is suitable for all standard IMRT... Read more

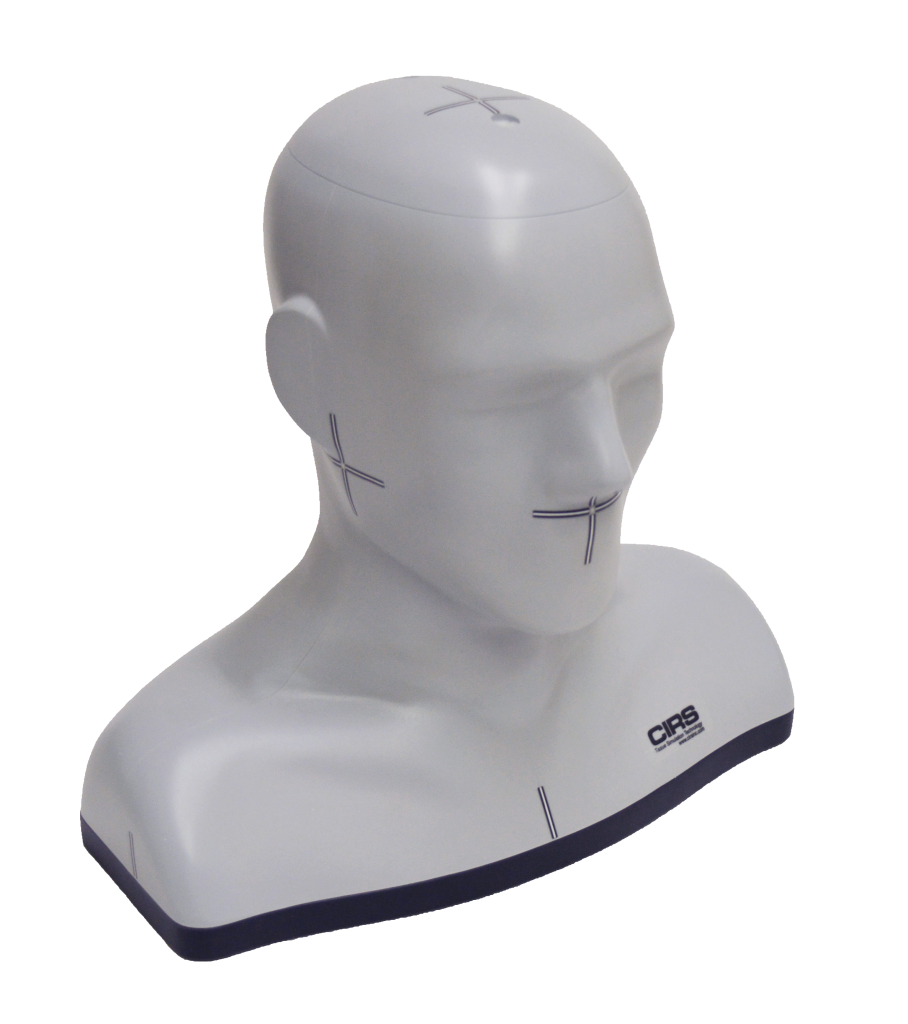

The CIRS Shoulder, Head and Neck End-to-End Verification Phantom (SHANE) is designed for end-to-end testing of treatment planning systems. The phantom can be used for every step in this process from imaging acquisition to dosimetry verification and patient-specific QA during head- and-neck VMAT and IMRT... Read more

The CIRS Dynamic Thorax Phantom (model 008A) is a precision instrument for investigating and minimising the impact of tumor motion inside the lung. It provides known, accurate and repeatable three-dimensional target motion inside a tissue-equivalent phantom. The phantom is perfect for comprehensive analysis of image... Read more

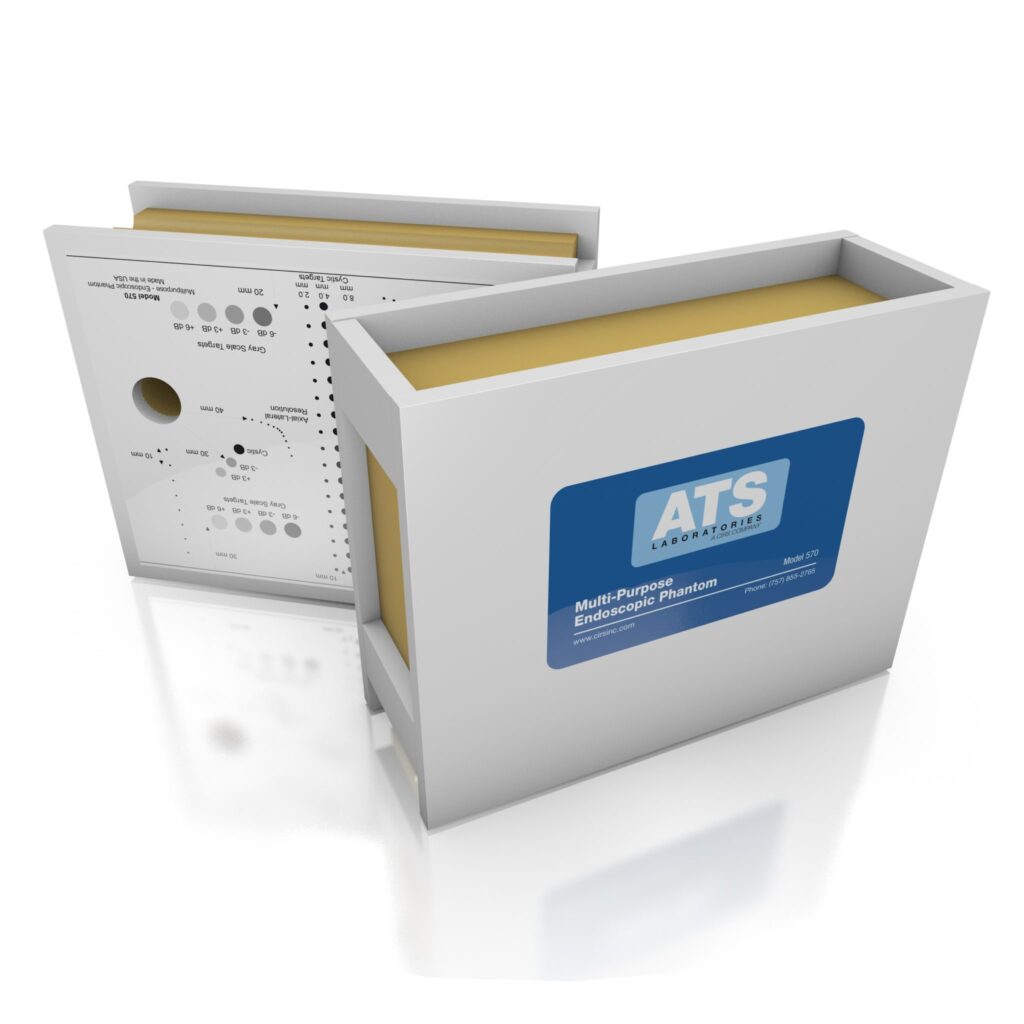

The Multipurpose and Endoscopic Phantom (Model ATS 570) is an easy, comprehensive means of evaluating imaging systems over the full range of clinical imaging frequencies (2 MHz to 18 MHz). The phantom has a combination of monofilament line targets for distance measurements and tissue mimicking target structures of varying... Read more

Expanded Image Quality CT QA. Perform robust image quality testing of advanced CT systems with Advanced iqModules from Sun Nuclear (formerly Gammex). This set of 4 modules provides comprehensive testing of high-contrast resolution, low-contrast detectability, slice sensitivity, geometric evaluation, and... Read more

This Computed Tomography Dose Index (CTDI) Phantom by Sun Nuclear (formerly Gammex) is used to measure absorbed doses and monitor scanner output for Dose Index QA with the this phantom. Compliance Maintenance. The CTDI Phantom addresses specifications outlined by the FDA (FDA 21CFR 1020.33) and IEC (IEC 60601-2-44, IEC... Read more

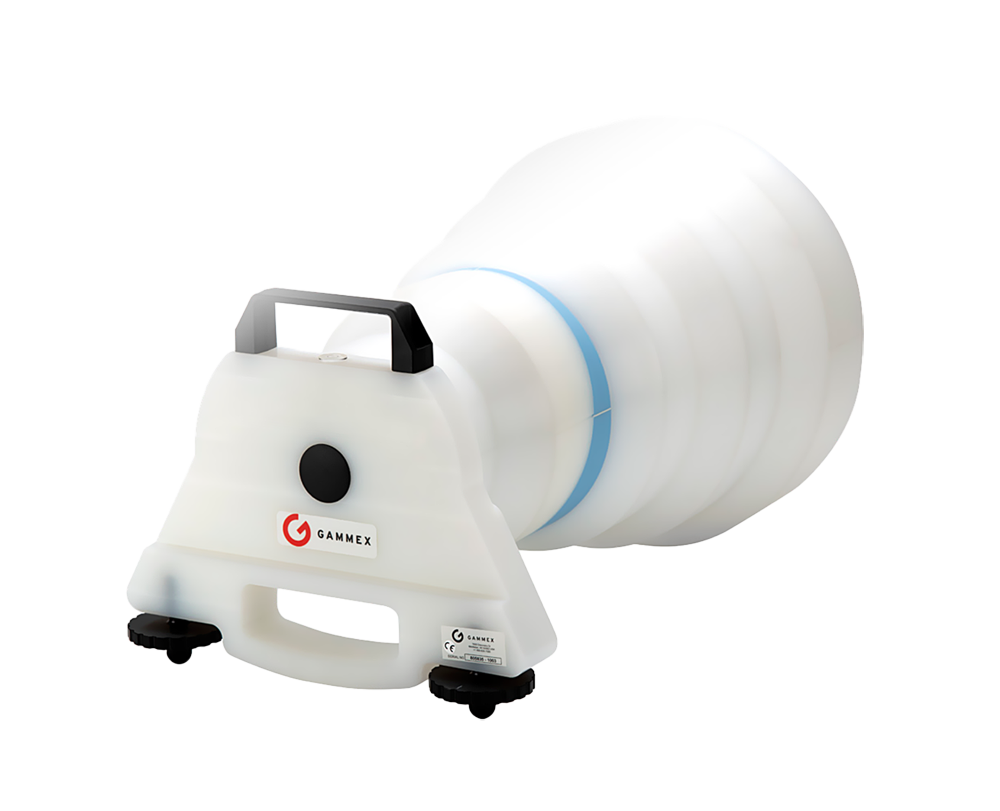

This Advanced CT Performance Assessment Phantom makes it possible to characterize advanced CT features, including Automatic Exposure Control and Iterative Reconstruction, to support protocol optimization and proper dose management for your... Read more

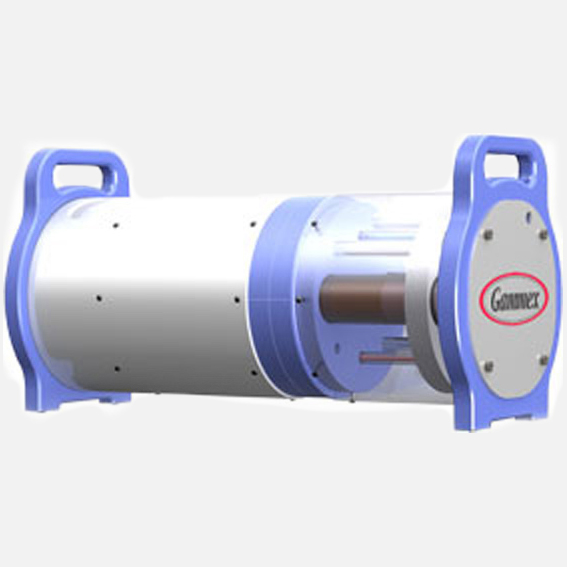

Sun Nuclear’s (formerly Gammex) CT Perfusion Phantom is designed to mimic the injection of a contrast bolus into a region of interest allowing you to generate precise time-attenuation... Read more

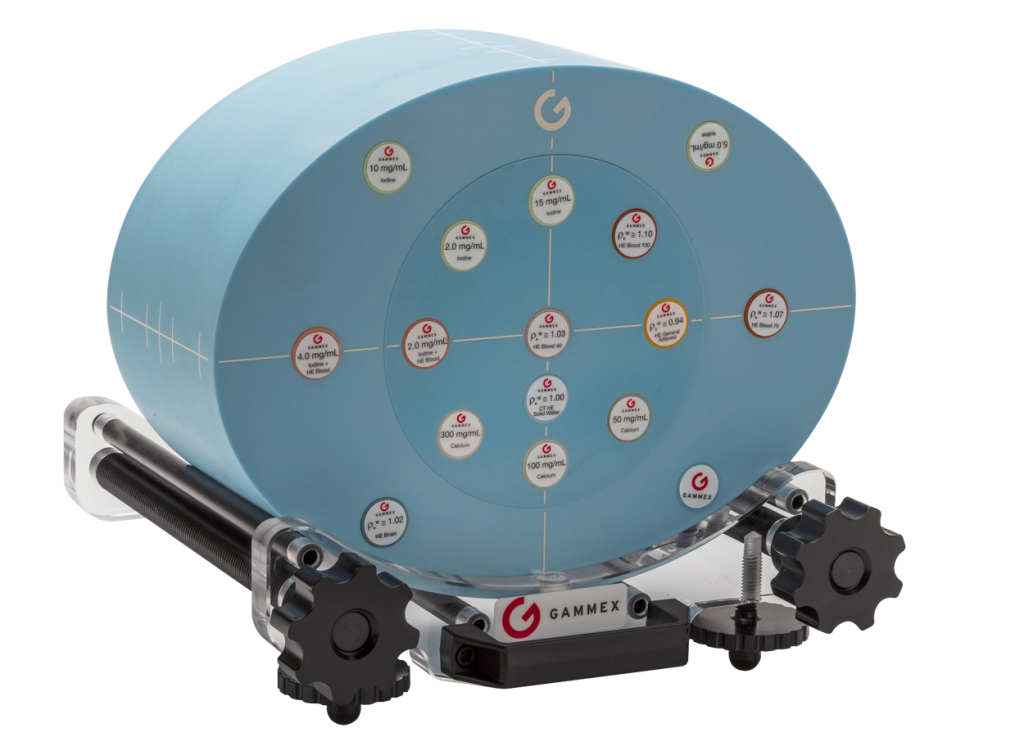

The Advanced Electron Density Phantom from Sun Nuclear (formerly Gammex) accurately converts CT values to HU or electron density values. It plays an important role in transitioning from diagnosis to a specific treatment protocol. With the Advanced Electron Density Phantom, ICRU-44 matched tissue equivalence, automation and... Read more

To ensure the performance and consistency of your multi-energy scans, Sun Nuclear (formerly Gammex) developed the Multi Energy CT Phantom. The phantom features 19 inserts representing different dimensions and concentrations of iodine, calcium, blood, adipose and other materials of particular interest to Multi-Energy CT... Read more

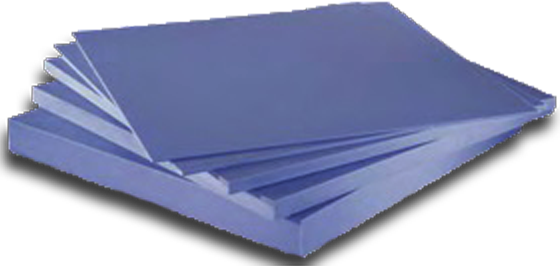

Solid Water HE from Sun Nuclear (formerly Gammex) is the next generation of solid water. It is designed for both therapy and imaging with improved uniformity and durability in mind. Solid Water®HE uses new nano-spheres to create homogeneous slabs while mimicking true water within 0.5% across a wide range of... Read more

The CIRS Model 701-706 ATOM Dosimetry Verification Phantoms are a complete line of anthropomorphic, cross sectional dosimetry phantoms developed to examine whole body effective dose, organ dose and verification of delivery of therapeutic radiation... Read more

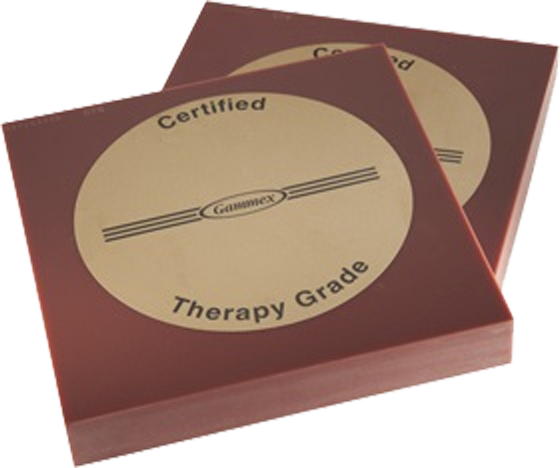

Certified Therapy Grade Solid Water® from Sun Nuclear (formerly Gammex) is a specially developed grade of Solid Water that is manufactured to the most exact quality assurance standards in the industry. It is designed for electron and photon beam measurements including relative ionization, depth dose and... Read more

Standard Grade Solid Water from Sun Nuclear (formerly Gammex) mimics the absorption characteristics of water over a wide range of energies. Radiation beam calibration is made easier when using Solid Water. It is designed to scatter and attenuate radiation in the same way as water and can be easily machined to accommodate... Read more

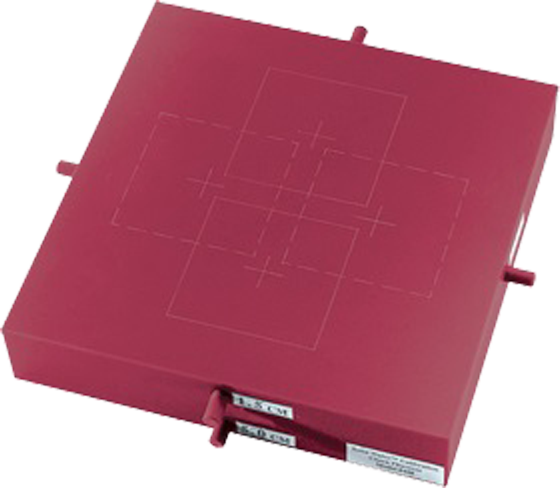

The Sun Nuclear (formerly Gammex) model 458 Calibration Check Phantom is an excellent test tool for checking energy output from radiotherapy machines. The phantom contains six cavities with corresponding plugs. This allows for measurements at depth of maximum dose deposition. Gammex technology also provides a custom... Read more

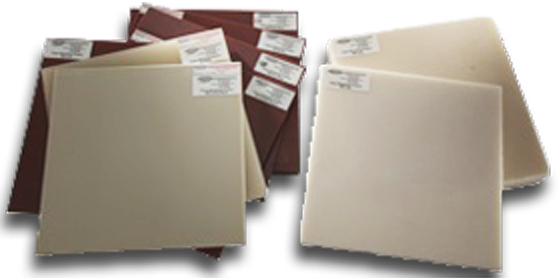

Tissue Equivalent Materials from Sun Nuclear (formerly Gammex) allow simple, convenient and accurate simulations for therapy dose determinations. Tissue Equivalent Materials (TEM) have a variety of uses for routine quality assurance and quality control in both diagnostic and therapeutic physics. TEM are user friendly and... Read more

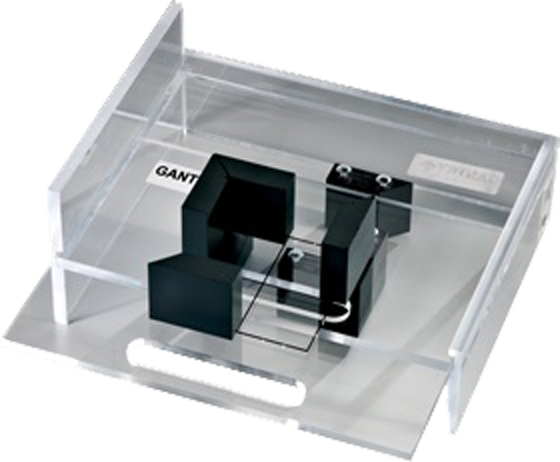

The Sun Nuclear (formerly Gammex) 430 Beam Alignment Test Instrument is an instrument used to analyze the alignment of a linear accelerator. It is recommended that beam alignment tests be completed at least once a year to determine problem situations such as: displaced focal spot, asymmetrical... Read more

The Sun Nuclear CT Perfusion Phantom with Gammex technology is designed to mimic a perfusion study where traceable material is monitored as it travels through brain tissue. Software that is proprietary to the CT scanner is then used to determine blood flow rates curves and to compare them to known normals.  This provides... Read more

The Sun Nuclear Dual Energy Characterization CT Phantom with Gammex technology provides users with the ability to perform Quality Assurance for Dual Energy CT analysis of Iodine and Calcium. The Phantom consists of a Solid Water disk approximately the size of an average pelvis. A matrix of 16 holes in the disk hold... Read more

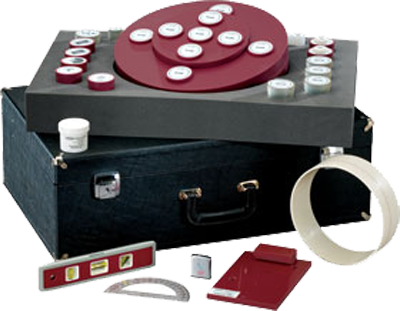

Sun Nuclear’s (formerly Gammex) model 461A Head/ Body CT Phantom provides a set of tools for evaluating CT image quality. The Solid Water composed phantom permits use of the phantom without the need to fill it with water. Head / Body CT Phantom features:. the head module consists of uniform disc of Solid Water... Read more

The ACR CT Accreditation Phantom from Sun Nuclear (Gammex) is designed to be an integral part of the American College of Radiology (ACR) CT Accreditation Program.  This voluntary program provides physicians with an opportunity for a comprehensive peer review of their CT facility, personnel qualifications, image quality... Read more

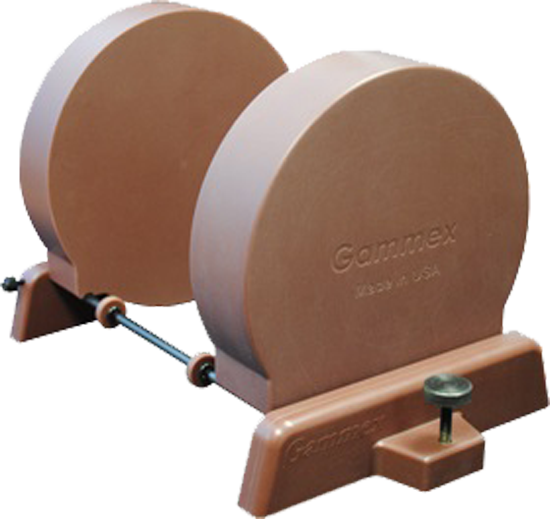

Accurately represent scatter effects from widebeam CT scanners with the ACR 464 extension plates from Sun Nuclear (Gammex).  Made from identical solid water materials, these extension plates allow images to begin and end in the same material to eliminate artifacts that may be introduced by scanning in air. ACR CT... Read more

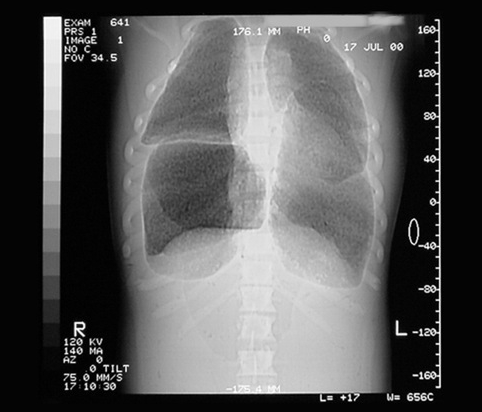

The Model 602 3-Dimensional Torso Phantom has been developed to deliver an accurate simulation of an average male torso for medical imaging applications. The removable organs enable flexibility in the placement of TLD’s, contrast agents, etcetera. The materials used for the phantom provide optimal tissue simulation... Read more

The Model 670 & 670S Water Equivalent Mini Phantom is designed for precise evaluation of scatter. The Phantom provides an excellent tissue simulation and opportunity of true dose comparison with the 30 x 30 cm Plastic Water slab phantom. Model 670 & 670S Water Equivalent Mini Phantom features:. water-equivalent... Read more

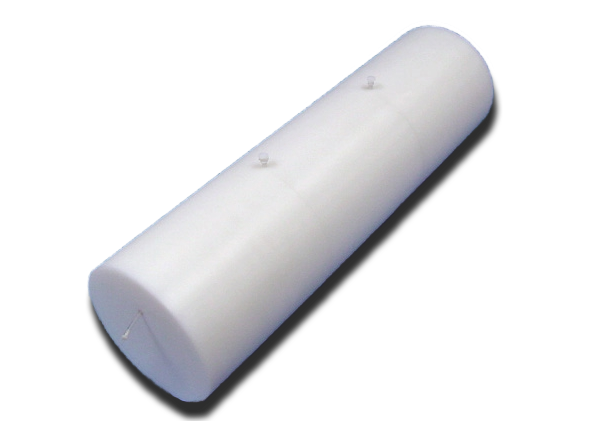

The CIRS Model 800 NEMA PET Scatter Phantom has been designed for NEMA standard NU2-2007. Model 800 NEMA PET Scatter Phantom features:. the cylinder consists of three segments that are assembled during testing test count losses, scatter fraction and random measurements in accordance with NEMA-NU2-2007 foam lined carry... Read more

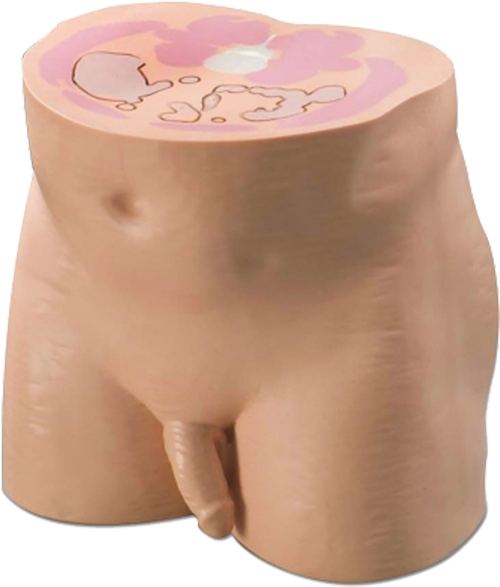

The Model 801-P Virtually Human Male Pelvis Phantom is the most realistic tissue equivalent phantom on the market. The phantom is used for radiation therapy and diagnostic radiology for demonstration applications and imaging dosimetry... Read more

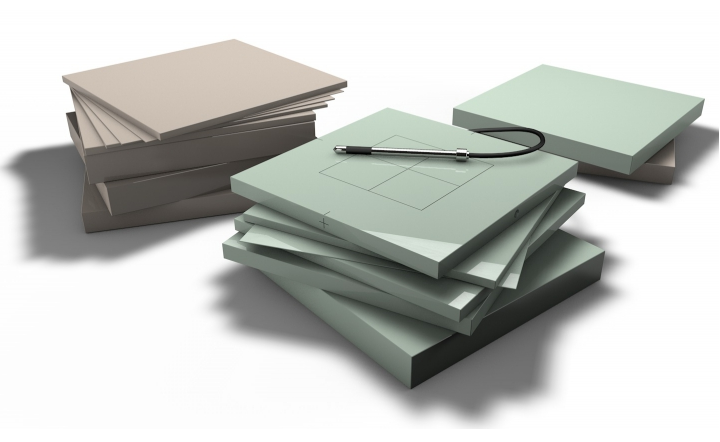

CIRS PW Plastic Water is a water equivalent for use with photon and electron beams within 0,5% of true water dose. It is flexible and resists breakage under... Read more

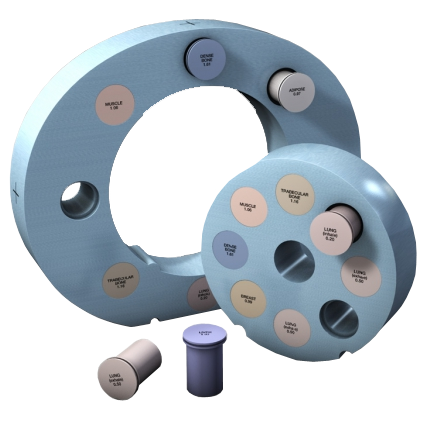

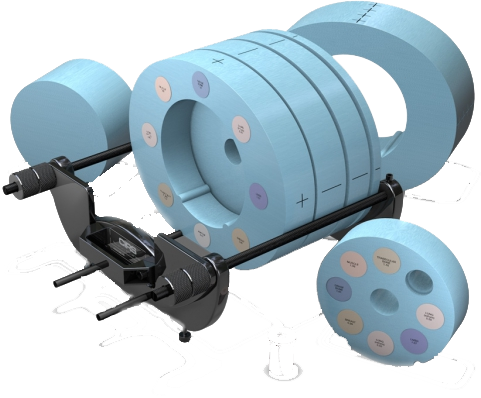

The Model 062MA CBCT Electron Density Phantom has been designed for Cone Beam CT Imaging systems. The Phantom is made of Plastic Water and covers geometries for imagers with dimensions of up to 40 cm x 40... Read more

CIRS designed this phantom for precise correlation of CT data to electron density of various tissues. The phantom consists of two disks made from Plastic Water® . The disks can represent both head and abdomen configurations. Nine different tissue equivalent electron density plugs can be positioned at 17 different... Read more

STEEVTM Phantom. The STEEV Phantom provides the most realistic clinical simulation to perform end-to-end testing of SRS QA systems in the most challenging anatomical regions. The Model 038 STEEV Steriotactic End-to-end Verification Phantom Patient is used for comprehensive testing of stereotactic radiosurgery systems.... Read more

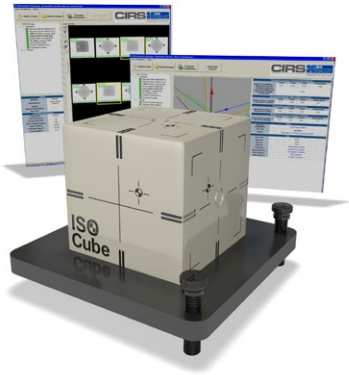

Target positioning through imaging guidance is critical for the accurate delivery of radiation treatment. Verifying that all of the imaging, localization and targeting systems are aligned with the true radiation isocenter is crucial. The ISO Cube provides a cost-effective, quick and accurate means of testing radiation... Read more

The Model 009 Cube 20 Phantom has been designed for routine QA in RT and IMRT applications where quick set-up and ease of use are important.  The cube is manufactured from Plastic Water DT which mimics the linear attenuations of water within 1% from 50 keV to 15 MeV. Model 009 Cube 20 Phantom features:. MLC QA routine... Read more

StereoPHAN is designed for end-to-end commissioning and quality assurance testing on all parts of the SRS process. StereoPHAN inserts and configurations are quickly exchanged with no tools or change in setup. It’s that simple, and that powerful. StereoPHAN Phantom features:. easy setup and assembly;  no tools required... Read more

The SRS Profiler (Sun Nuclear) is a refined beam QA device for stereotactic radiosurgery areas measuring several beam parameters in a single exposure. SRS Profiler features:. SunPoint diode detectors (125) streamlines commissioning, acceptance testing and routine QA tests compatible with Accuray CyberKnife support FFF... Read more

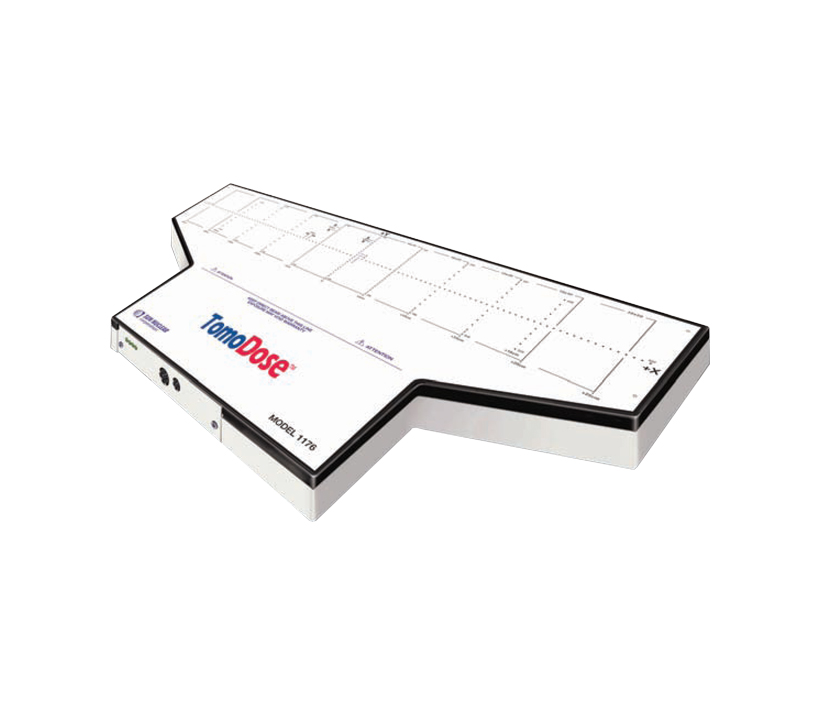

The TomoDose (Sun Nuclear) is a two dimensional array for trouble-shooting and QA measurements of a TomoTherapy... Read more

Each section of the Model 007 & 007A CT Dose Phantoms can provide separate dose information. Users are able to measure minimum, mid-range and maximum values of the nominal tomographic section thickness when performing dose profile... Read more
