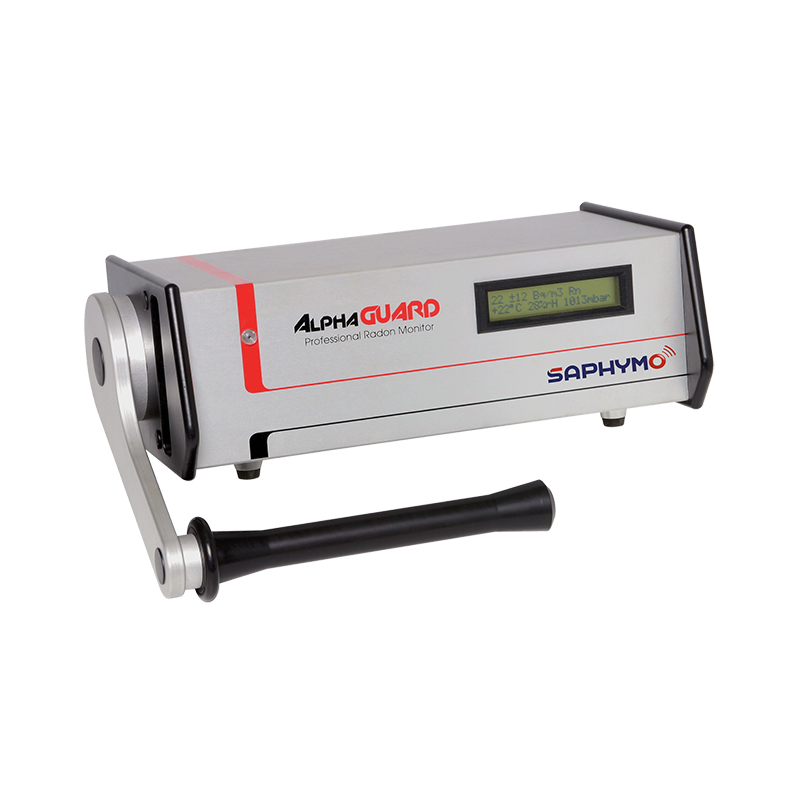

AlphaGUARD is a portable equipment designed for instantaneous or continuous measurement of radon gas activity (Rn-222).
The monitor is used for the measurement of Radon in the environment, mines, laboratories and also for complementary investigations in buildings.
Air, water, soil, exhalation measurements are performed thanks to a large range of accessories and external probes.
DataEXPERT software performs data analysis and storage.
New feature
The type PQ2000 PRO is now upgradeable with a Thoron measurement mode. This additional new mode enables the AlphaGUARD to discriminate radon from Thoron.
AlphaGUARD characteristics
- detector: 0.62 L ionization chamber
- mode of operation: 3D alpha spectroscopy and current mode
- measuring range: 2 – 30.000 Bq/m³ (P30), 2 – 2.000.000 Bq/m³ (P2000/PQ2000/PQ2000PRO)
- instrument calibrator error: 3%
- sensitivity of detector: 1 cpm at 20 Bq/m³
- design optimized for fast passive diffusion: 10/60 min and flow mode 1/10 min (PQ2000 PRO only)
- memorization P30/P2000/PQ2000: 1 to 4 months (resp. 10 min and 60 min cycles), PQ2000 PRO: 3 days, 1 and 6 months (resp. 1, 10 and 60 min cycles)
- autonomy: 10 days (40 days with external battery)
- dimensions: 120 x 315 x 175 mm³
- weight: 4.5 kg
Would you like to know more about the AlphaGUARD?
Download the datasheet or contact one of our product specialists.
