MINITRACE CSDF - Bertin Instruments

Any questions or would you like to order this product? Do not hesitate to contact us

Datasheet

Radiation type
• Alpha, beta and gamma

Detector type
• Geiger-Mueller pancake, active counter area 15.5 cm², active diameter 44.5 mm, window 2.0 mg/cm², energy compensated

Display unit
• μSv/h, cps, Bq, Bq/cm² and Bq/L

Measurement range
• Dose rate: up to 5,000 µSv/h (100 mR/h)
• Pulses: up to 10,000 cps (300,000 cpm)
• Activity (depends on the radionuclide): up to 100 000 Bq (999,000 dpm)
• Surface contamination (depends on the radionuclide): up to 5,000 Bq/cm2 (30,000 dm/cm2)
• Food: up to 100,000 Bq/l (1,000,000 pCi/l)

Gamma sensitivity
• 4.3 cps/µSv/h

Energy Range
• 26 keV to 1.25 MeV, lid has to be closed

Sensitivity
• Co60: 0.41 cps/Bq/cm²; C14: 1.65 cps/Bq/ cm²; Sr90+: 10.65 cps/Bq/ cm²; Am-14:4.19 cps/Bq/ cm²; Cl36: 9.57 cps/Bq/ cm²; Cs137: 11.15 cps/Bq/ cm² ; U238: 4.19 cps/Bq/ cm²; I131: 9.71 cps/Bq/ cm²

Display
• 6-digit LCD display, plus 5-digit alpha numeric display for alarm- and status messages

Grid

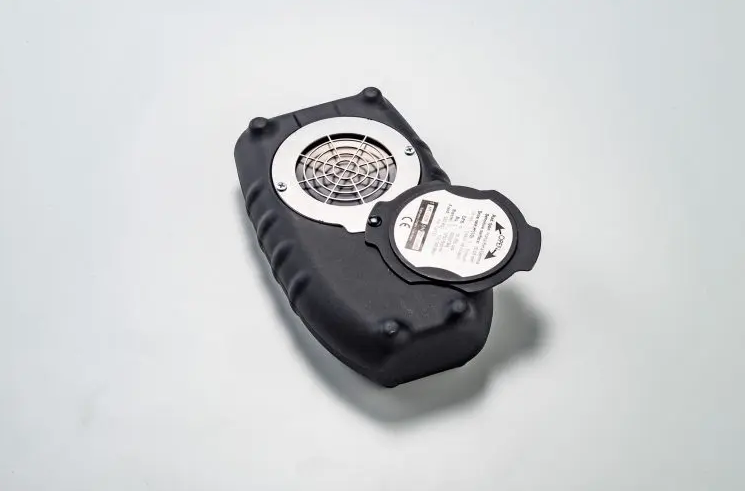

• 0.8 stainless steel, 80% transparency, easily removable

Integration time
• Automatic, with count up mode adjustable

Energy supply
• 2 Mignon batteries (type: LR6, AA, MN 1500) 1.5V

Battery autonomy
• Up to 2,000 h

Built-in sensors
• IR-interface for software communication

Benefits

Easy and fast monitoring
• MiniTRACE CSDF is easy to use (2 buttons interface) and provides a very fast response time (1sec.). It can also be set up with the optional DataVIEW software.

All-in-one survey meter
• MiniTRACE CSDF allows multipurpose measurements for dose rate H*(10) (µSv/h), count rate (cps), activity (Bq), surface contamination (Bq/cm²) and food contamination (Bq/L). Radionuclide can also be selected.

Designed for harsh environments
• MiniTRACE CSDF is compact and robust with its strong housing protected with a rubber boot. It is suitable for long time operations (battery lifetime: 2,000 h).

Technologies

MiniTRACE CSDF is a unique multipurpose meter for contamination, survey, dose rate, XRays, food and wipe test measurements. It is equipped with a 15.55 cm² Geiger-Mueller pancake detector and a 0.8 mm stainless steel grid. In addition to the verification of contamination, it is ideally suited to measuring the environmental dose rate equivalent (H*(10)).

MiniTRACE CSDF displays values in cps, μSv/h, Bq, Bq/cm² and Bq/L. For the Bq and Bq/cm² modes, the user can select different nuclides with built in nuclide specific calibration library (Cs137, Am241, I131, Sr90, U238, C14, Cl36, Co60).

The Bq/cm² mode (for surface contamination) is calibrated according to ISO 7503-1. MiniTRACE CSDF offers a special mode for food measurement: it measures the activity level found in the liquid or smashed food, with a state-of-the-art food measuring kit.

Accessories

• Protective rubber cover (included)

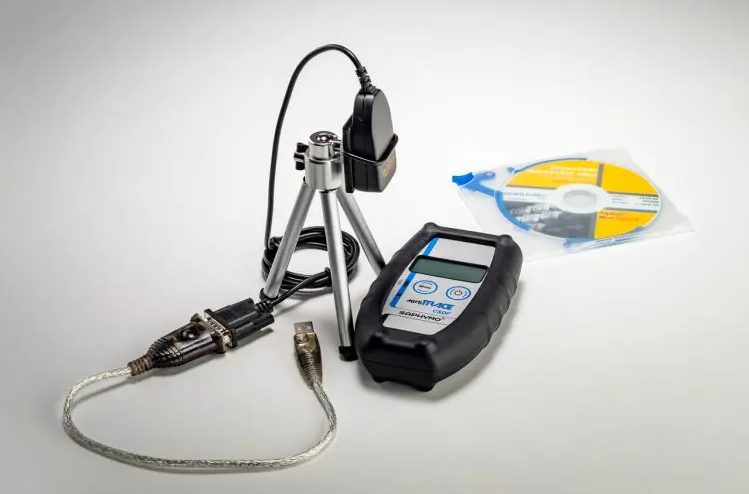

• Communication kit (incl. DataVIEW software and IR transceiver)
• Transparent plastic protection

• Belt pouch
• Suitcase (Pelicase)
• Wipe test kit

• Food measuring kit
• Emergency case
• Pressure-tight container for air transport
